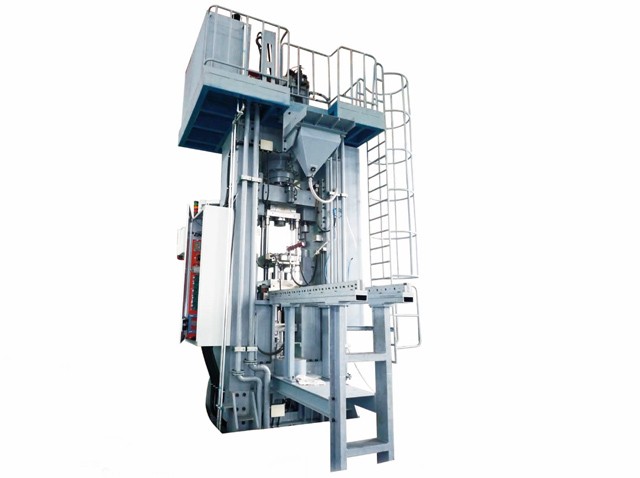

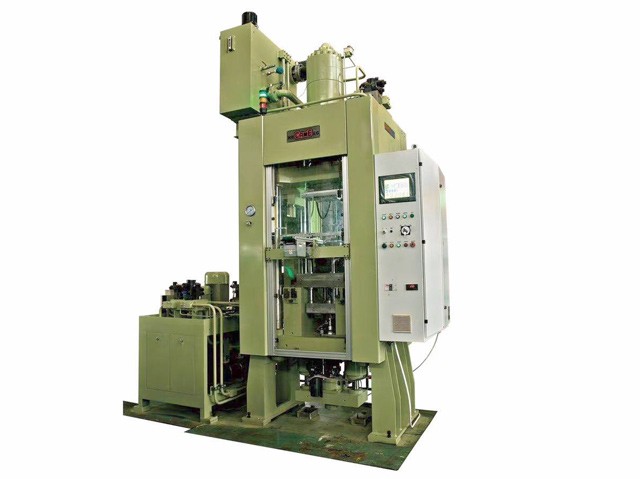

Diamond Powder Compacting Press Machine

Huanghe Whirlwind diamond powder compacting press machine is a special press for powder metallurgy molding, suitable for various powders (iron, copper, graphite, ceramic, aluminum, resin, etc.) press molding.

Description

Introduction of Whirlwind Diamond Powder Compacting Press Equipmeng

1. This machine is a special press for powder metallurgy molding, suitable for various powders (iron, copper, graphite, ceramic, aluminum, resin, etc.) press molding.

2. There are straight-edge frame type and four-column frame type to choose from.

3. It adopts the floating structure of the mold base, which is suitable for pressing various products with complex shapes.

Features and Advantages of Whirlwind Diamond Powder Compacting Hydraulic Press

1. Our powder compaction press has good rigidity, high precision and durability.

2. Able to work for a long time under the maximum rated capacity.

3. Fully consider the dustproof of each part (oil tank, electrical parts circuit, sliding part).

4. We have simple and easy specifications while keeping same basic idea.

4. Software control which is very convenient.

5. Flexible operation time: it can realize uninterrupted work for several hours to several days.

6. We offer senior scientists and experts to install the equipment and train your workers to ensure quick beginning of your production.

7. Flexible Payment like T/T advance, Visa, trade assurance, western union, etc.

8. Five-year Warranty after Delivery.

Free quote is offered for worldwide customers, and delivery is also very fast. Huanghe Whirlwind is a famous powder compacting press manufacturer in China, which is a leading manufacturer in the production and innovation of super-hard products with its own large factory and high standard innovation team. Contact us for inquiry if in need!

Specification

Model HKM-F100 HKM-F350 HKM-F500 HKM-F750 HKM-F1000
Press capacity 1000KN 3500HN 5000KN 7500KN 10MN
Upper slide stroke 400mm 400mm 400mm 400mm 450mm
Opening height 1290mm 2250mm 2600mm 2400mm 2500mm
Area of lower working table 780*650mm 750*800mm 800*800mm 1050*900mm 1400*1500mm
Lower cylinder capacity 300KN 900KN 2000KN 3000KN 3000KN
Maximum filling height 150mm 180mm 200mm 200mm 165mm
Motor Power 22KW 60KW 85KW 115KW 150KW
Press weight 8 Ton 35 Ton 40 Ton 70 Ton 90 Ton
Upper indenter limit device Selectable Selectable Selectable Selectable Selectable
Model changing device Selectable Selectable Selectable Selectable Selectable
User preparation Power supply: 380V Air supply: above 0.85Mpa
Cooling water: below 30℃ Working oil: ISO standard product
